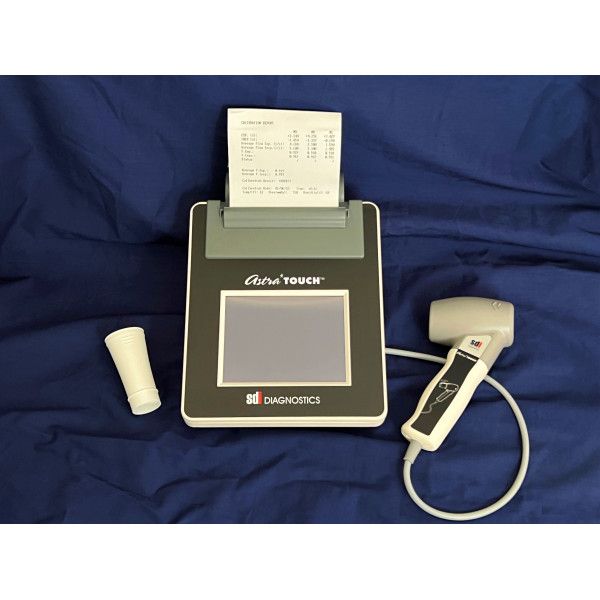

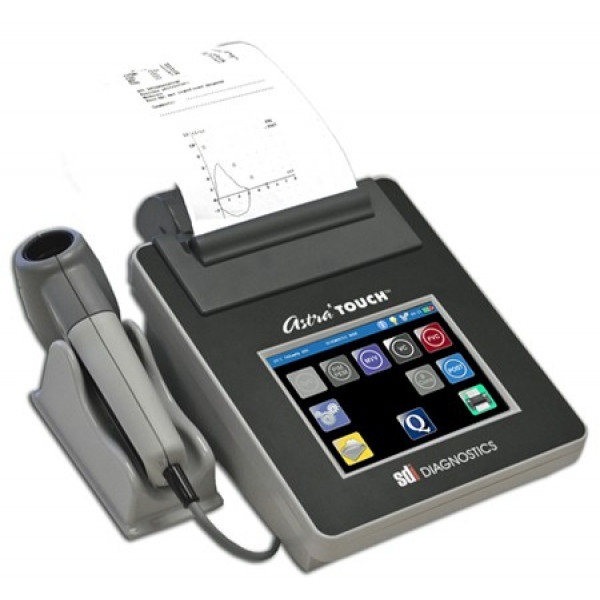

AstraTouch Spirometer
The AstraTouch Spirometer was designed to be easy to use while providing accurate and precise testing data. The simplicity of operation and wealth of configurability options expand the scope of spirometry testing like never before. Review and enter data, make a diagnosis, print a report or download to EMR quickly and with minimal effort.
AstraTouch™ Features
|
AstraTouch Couples Sophisticated Simplicity With Comprehensive Spirometry.
|
 |
Easy Navigation The bright, sharp RealColor display offers easy visualization of graphics and tabular data as the test is being performed. Fingertip touches of the descriptive icons make navigation from screen-to-screen and function-to-function quick and easy, saving time and simplifying the test visit. |
 |
|

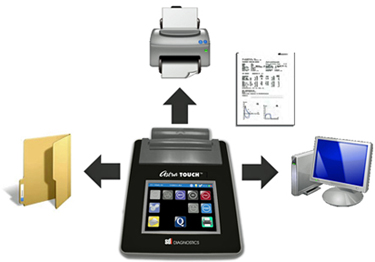

AstraPro software expands AstraTOUCH versatility Sophisticated communication links allow patient test data transfer from the spirometer to the PC archive or output to EHR/EMR. Choose either Pre- and Post-bronchodilator and bronchial challenge testing or use the incentive program with your pediatric patients or adults. AstraTOUCH communicates with your PC directly via USB or wirelessly via Bluetooth. |
 |
 |
 |
 |
||||
| Choose from four different incentive displays to maximize your patients' testing effort. | Choose from 16 different authors for Predicted selection. Select one set for adults and a different set for children or one author for bot | The bronchoprovocation mode provides protocol creation, medicant listing and dosages, and PD levels. | ||||
|
||||||
ASTROTOUCH SPIROMETER
TECHNICAL SPECIFICATIONS
Forced Parameters Measured
Forced Vital Capacity:
FVC, FEV1, FEV1/FVC, PEF, FEF50%FEV6, FEV1/FEC, PEF, FEF50%, FEF25-75%, FEV6,FEV1/ FEV0.5, PEFT, Vext, FIVC, FIF50%, FEF50/FIF50, QC Grades, FEV .5, FEV3, FEV.5/FVC,FEV3/ FVC,FEV1/VC, FEV1/FEV6, FEV1/PEF, FEV1/FIV1, PEF/PIF, FEF25%, FEF75%, FEF75-85%, FET25-75%, FET100, FIV1, FIV1/FIVC, PIF, MTT, MVVInd, Lung age
MVV:
MVV, Br./min
Bronchoconstriction:
FVC, FEV1, PEF, FEF25-75%, PDx
Relaxed Parameters Measured
VC:
VC, TV, ERV, IRV, IC, Ti, Te, Tt, Ti/Tt
Maneuvers per patient:
8 total; best test and last test highlighted
Interpretation:
Selectable -- Kory, Miller, ATS, NLHEP (Ferguson)
Predicted sets:
Selectable -- 16 Total
Ethnic correction:
Selectable -- % Actual, Caucasian, Hispanic, AfroAmerican
Language:
Selectable -- English, Spanish or French
Measurement Scale (BTPS)
Flow range:
0-16 L/sec
Volume:
0-10 L
Measurement method:
Infrared Interruption via Digital Turbine
Dynamic flow resistance
<1.5 cm H20/L/sec @14 L/sec
Measurement Precision (BTPS)
At highest volume:
+/- 3% or 50 mL
At highest flow:
+/- 5% or 150 mL
Time related precision:
.5%
Volume resolution:
<6 mL
Sampling frequency:
50 Hz
Hardware Specifications
Storage capacity:
3000+ study database
Display:
5.7" High resolution color VGA touchscreen
Communication:
USB to printer and PC, RS232, HL-7*
Dimensions:
7.7" x 10.6"x 3.9"
Weight:
3.7 lbs.
Power supply:
110 to 240V, 50 to 60 Hz or NiMH
battery pack
battery pack
Storage Temperature:
-4 to 158 F
Printer:
110 mm thermal graphic printer
Optional
Ethernet I/O
Bluetooth to PC
Flex Pulse Oximetry module and program (ask for indices)
NiMH battery/charger pack
Calibration syringe
MIP/MEP
Weather Station (Barometric Pressure, Temperature, Humidity)
Sniff -- Rhinomanometry
Carrying Case
Bluetooth to PC
Flex Pulse Oximetry module and program (ask for indices)
NiMH battery/charger pack
Calibration syringe
MIP/MEP
Weather Station (Barometric Pressure, Temperature, Humidity)
Sniff -- Rhinomanometry
Carrying Case
